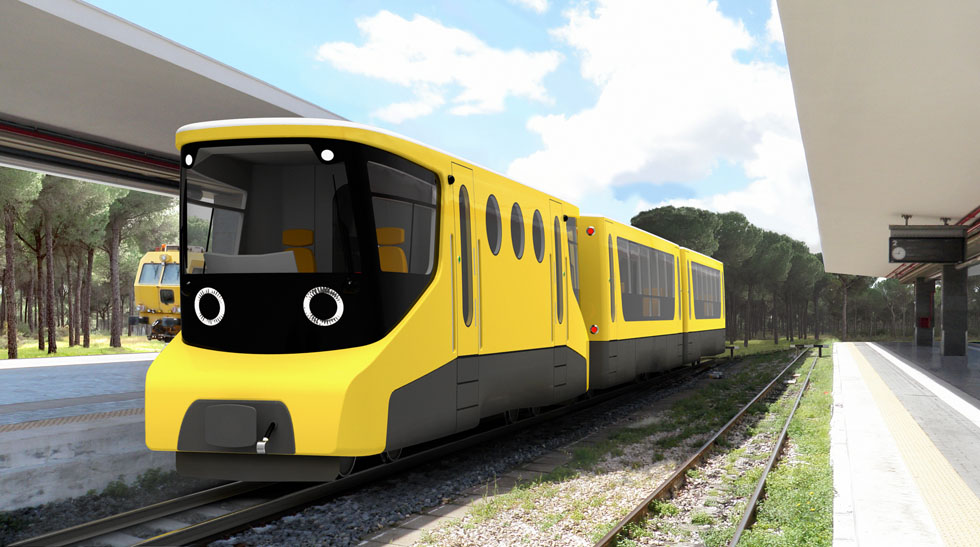

Studio Ippiart by order of the Moscow State University of Railway Engineering designed the locomotive and wagons for a children's narrow-gauge railway. The diesel locomotive designed for driving a passenger train through the territory of children's park, and teaching children the basics of locomotive control, the work of its systems and constructions.
Operation features are reflected in the organization of the driver workspace. The cabin has a large glass area and a reverse slope windshield that provides good visibility on the track and hitch.
Two seats are installed in the cockpit: for the student and the instructor. Student’s workplace is equipped with three multi-functional touch screen, which can display the speed, different train systems, images from surveillance cameras which are replaced the rear view mirrors, and from other cameras in the passenger salons. Instructor's workplace is equipped with an emergency stop button.
Passenger cars designed to carry children in the park together with the accompanying, have open interiors with the arrangement of chairs along the windows and with central sofa, opposite the large panoramic windows.
The passenger compartment and driver's cab equipped with heating and air conditioning systems. The locomotive and cars are designed to work with any standard platforms. To be able to use with the "low" platforms provides the retractable stage.
|Cross-section standard GOST 9720-82||TU|
|Engine power||310 h. p.|
|Maximum speed||50 km/h|
|Minimum curve radius||40 m|
|Weight of the locomotive in the service state||20 t|
|Load from the wheel pair to the track||5 t|
|Length on the hitches axes||11040 mm|
|Body length||10716 mm|
|Width|| 2300 mm|
|Height||3340 mm |
|Wheel base||6500 mm |
|Wheel diameter||610 mm |
| || |
|Gauge||750 mm |
|Cross-section standard GOST 9720-82||TU |
|Body material||Steel/Fiberglass |
|Number of seats||24 |
|Number of axes||4 |
|Construction speed||50 km/h |
|Wagon tare weight|| 12 t|
|Lenght on the hitches axes||11110 mm|
|Body length|| 10200 mm|
|Wheel base||7000 mm|
|Wheel diameter||610 mm|
